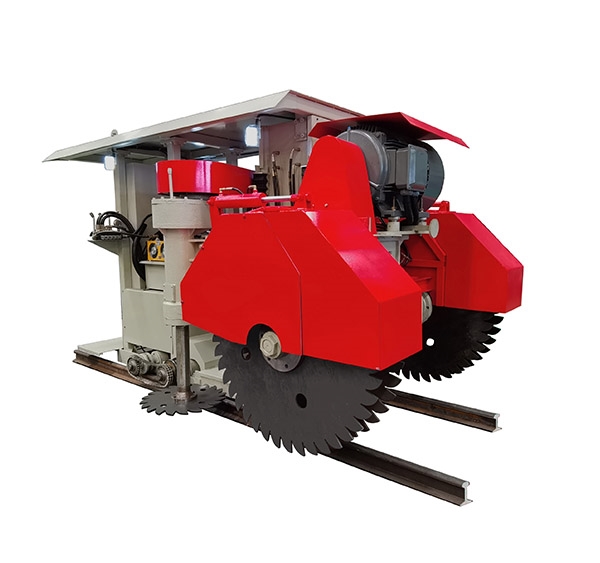

砂岩采石场切割机
Sandstone Quarry Cutting Machine

HKSS-1400 合用于开采砂岩、石灰岩和页岩，将其切割成用于修建的石块。

HKSS-1400 is suitable for mining the sandstone, limestone and lieterate, cutting into blocks for building.

Brick products quarried:开采的砖成品：

首要特色
1) 横向切割依托的是大型主柱的垂直导轨，其布局简略且坚忍，高低运转安稳。
2）界面简练，操纵简洁。一位工人只要测验考试几个小时就可以谙练把握其利用方式。
3）接纳细弱且较大的摆动臂布局停止穿插切割，切割进程不变且疾速。
4）具备 93% 效力的微弱机电，输入功率高且能耗低。

Main Features

1) The longitudinal cutting relies on the large main column vertical guide rail, the structure of which is simple and strong, straight up and down runs stably. 2) Simple interface, easy to operate. A worker is able to employ it at best after having a try of few hours. 3) Crosscutting with the thick and big swing arm structure, the cutting is stable and fast. 4)Powerful motors with 93% efficiency, tall output and low consumption.

接洽咱们，获得完全计划!
Contact us to obtain the complete solution!

Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
华(hua)隆机(ji)(ji)械设备，数铣五轴联动桥(qiao)(qiao)切(qie)机(ji)(ji)，四轴桥(qiao)(qiao)切(qie)机(ji)(ji)，4+1桥(qiao)(qiao)切(qie)，5+1桥(qiao)(qiao)切(qie)，三轴桥(qiao)(qiao)切(qie)机(ji)(ji)，红外(wai)线桥(qiao)(qiao)切(qie)机(ji)(ji)，黄金麻(ma)石才(cai)切(qie)机(ji)(ji)，黄金麻(ma)石才(cai)精(jing)(jing)工(gong)作(zuo)场防具(ju)，黄金麻(ma)石才(cai)cnc精(jing)(jing)密机(ji)(ji)械工(gong)作(zuo)机(ji)(ji)，黄金麻(ma)石才(cai)cnc精(jing)(jing)密机(ji)(ji)械工(gong)作(zuo)防具(ju)，黄金麻(ma)石才(cai)精(jing)(jing)工(gong)作(zuo)正(zheng)中部，厨(chu)房操作(zuo)台精(jing)(jing)工(gong)作(zuo)正(zheng)中部，水刀(dao)，水刀(dao)激光(guang)切(qie)机(ji)(ji)，选矿(kuang)厂(chang)企(qi)业(ye)开(kai)采(cai)作(zuo)业(ye)开(kai)采(cai)作(zuo)业(ye)防具(ju)，选矿(kuang)厂(chang)企(qi)业(ye)开(kai)采(cai)作(zuo)业(ye)圆板(ban)锯(ju)(ju)，圆板(ban)双刀(dao)锯(ju)(ju)，选矿(kuang)厂(chang)企(qi)业(y🗹e)开(kai)采(cai)作(zuo)业(ye)机(ji)(ji)，选矿(kuang)厂(chang)企(qi)业(ye)开(kai)采(cai)作(zuo)业(ye)锯(ju)(ju)。

参数		单元	HKSS-1400
纵向锯片直径	Diameter of the vertical	mm	1330
横向锯片直径	Diameter of the horizontal	mm	600
锯片厚度	Blade Thickness	mm	12
最大切割深度	Max.cutting depth	mm	500
切割宽度	cutting width	mm	1350-1750
前进速率	velocity of approach	m/min	10-45
起落油缸最大路程	Max.stroke of the lifting cylinder	mm	700
纵向主机电功率	Vertical main motor power	kw	75
横向主机电功率	Horizontal main motor power	kw	45
牵引机电功率	power of traction motor	kw	5.5
液压站机电功率	Hydraulic station motor power	kw	5.5
总功率	gross power	kw	133
零件分量	gross weight	kg	6000
形状尺寸	Dimensions	mm	4200×2060×2200
